NRF24L01+ RF Transceiver (4 pieces)

NOTE: For large quantity orders with custom pricing please contact us directly.

Overview

• RF transceiver with up to ~100m range (line of sight, ideal conditions).
• Build-in 2.4GHz antenna. 125 communications channels.
• Low power, SPI interface
• 4-pack.
• PTSolns Customer Support – Your satisfaction matters to us. Please contact us for troubleshooting help or any other concerns you may have.

This RF transceiver is a well-known and popular wireless module. A large online community helps support countless tutorials and resources. We have several tutorials, many of which include the NRF24L01+. See for example our tutorial on getting started with the NRF24L01+ (COMING SOON).

The NRF24L01+ is easy to use and integrates very well with many of the common microcontrollers, such as the Nano. An expected range is about 100meters depending on the environmental conditions. Straight line-of-sight in ideal conditions are best. This module is easy to add to a breadboard or prototyping board to give your project wireless capabilities.

Technical Specifications

• Frequency range: 2.4GHz + Selected Channel (0-124MHz)
• Number of channels: 125
• Onboard antenna
• Operating supply voltage: 1.9V - 3.6V
• Logic voltage: 5V
• Communication range: ~100m (line of sight, ideal conditions)
• PCB dimensions: 28.5mm x 15.2mm
• Weight: 2.2g
• Pinout: See diagram below

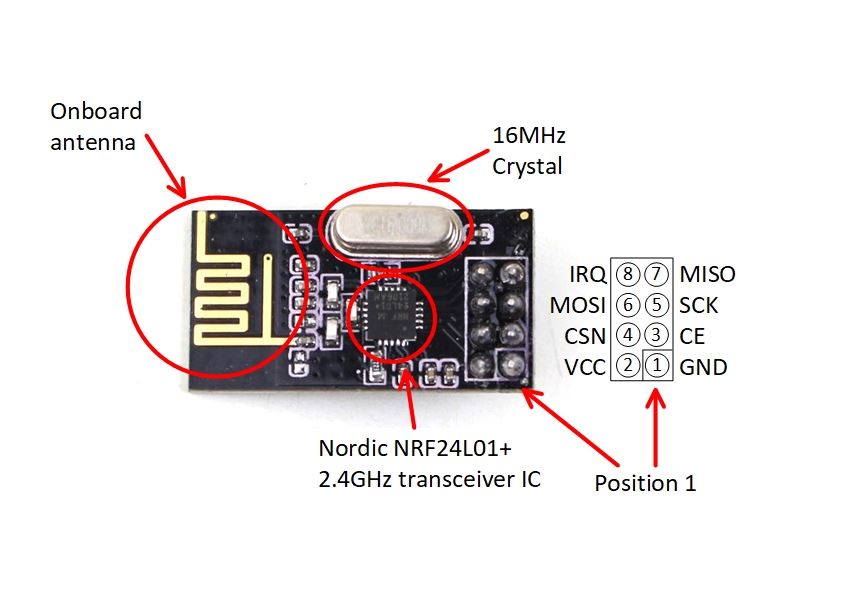

NRF24L01+ Pinout diagram
