Arduino UNO with Wifi Rev 2 (ABX00021)

Arduino UNO with Wifi Rev 2 (ABX00021)

Regular price $54.00
Regular price Sale price $54.00
Sale Sold out
Shipping calculated at checkout.

PTSolns is proud to be an official distributor of genuine Arduino products.

NOTE: For large quantity orders with custom pricing please contact us directly.


Overview

  • The Arduino for your educational projects with wireless connectivity and motion sensing.
  • Operating Voltage 5V. Input Voltage (recommended) 7-12V.
  • Ideal for IoT (Internet of Things) industries such as automotive, agriculture, consumer electronics, smart home projects, or logging data.
  • Includes a 6 axis accelerometer/gyroscope and temperature sensor to accurately measure movement: make step counters, fall sensors, door opening alarms, etc.
  • Communicate directly with your phone or tablet via BLE: send sensor information or build a remote controlled robot!

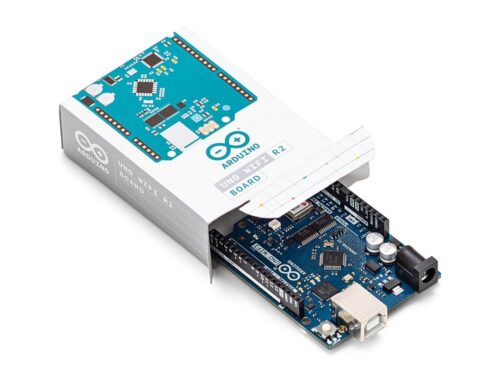

  • Package includes one genuine Arduino UNO with Wifi Rev 2 (ABX00021)
  • PTSolns Customer Support – Your satisfaction matters to us. Please contact us for troubleshooting help or any other concerns you may have.

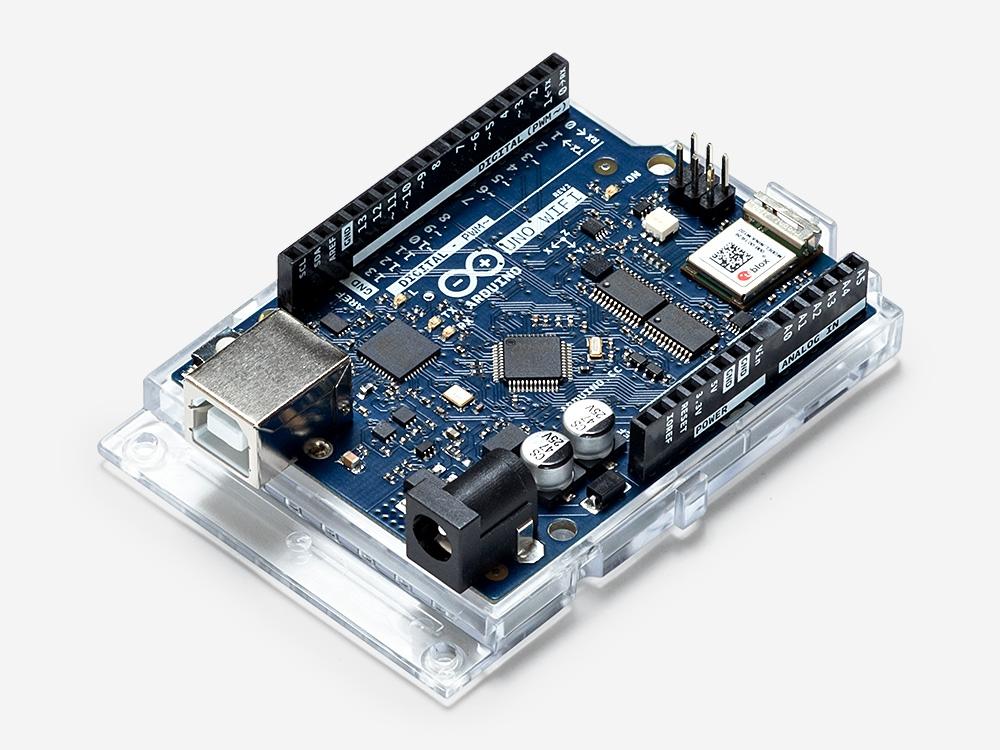

The Arduino UNO WiFi Rev.2 is the easiest point of entry to basic IoT with the standard form factor of the UNO family. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the Arduino UNO WiFi Rev.2 is your one-stop-solution for many of the basic IoT application scenarios.

Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi / Bluetooth and some other enhancements. It incorporates the brand new ATmega4809 8-bit microcontroller from Microchip and has an onboard IMU (Inertial Measurement Unit) LSM6DS3TR.

The Wi-Fi Module is a self-contained SoC with integrated TCP/IP protocol stack that can provide access to a Wi-Fi network, or act as an access point. It is the u-blox NINA-W102 and (here) you find the datasheet.

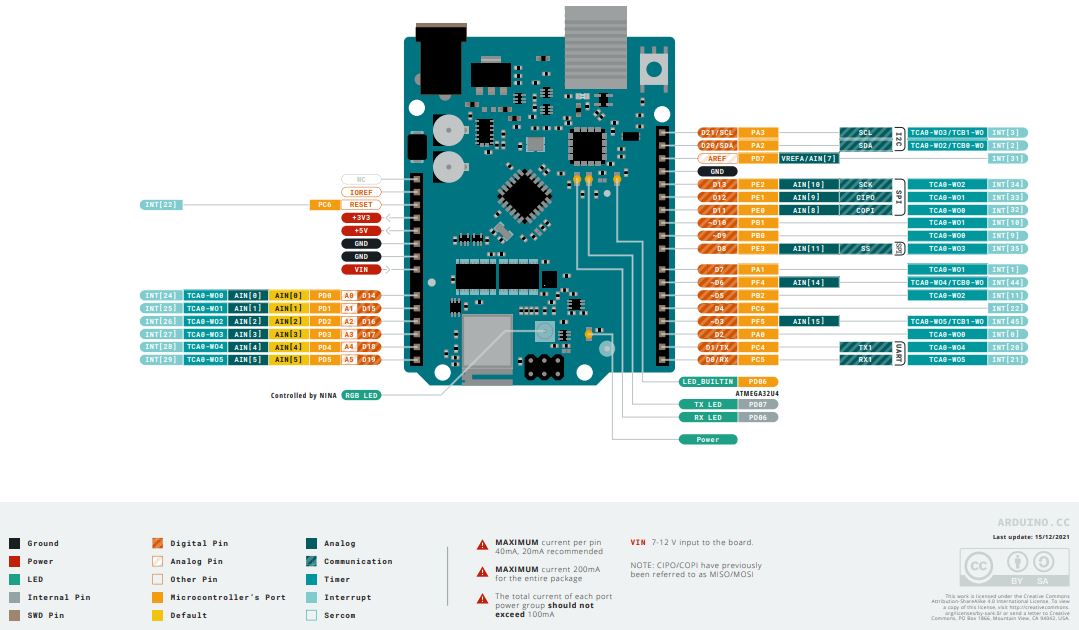

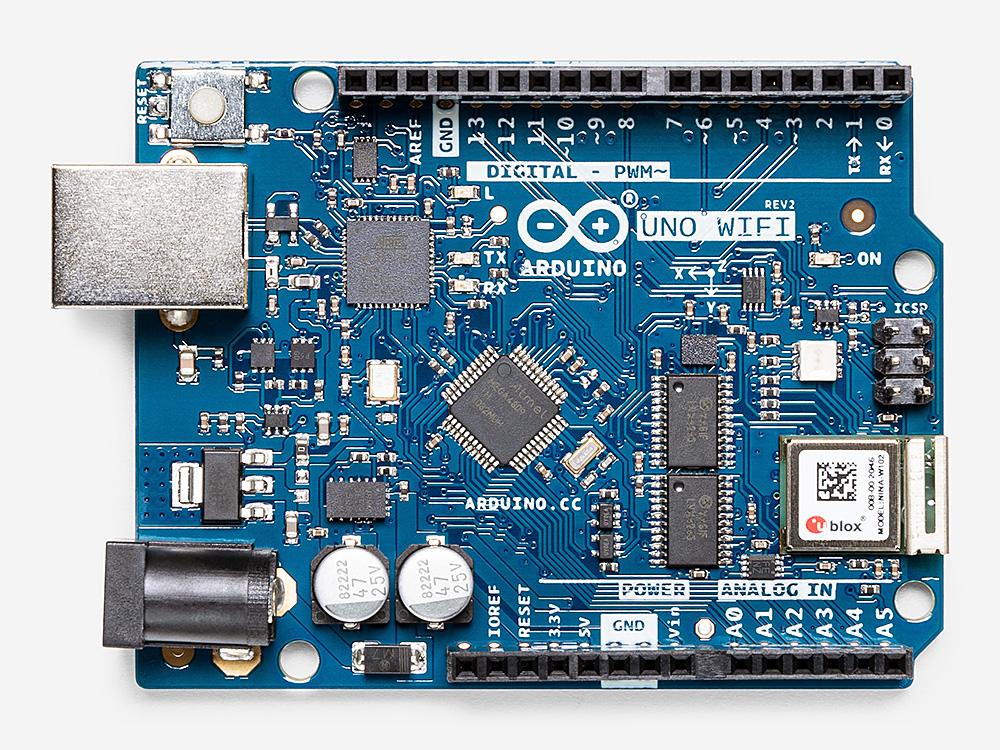

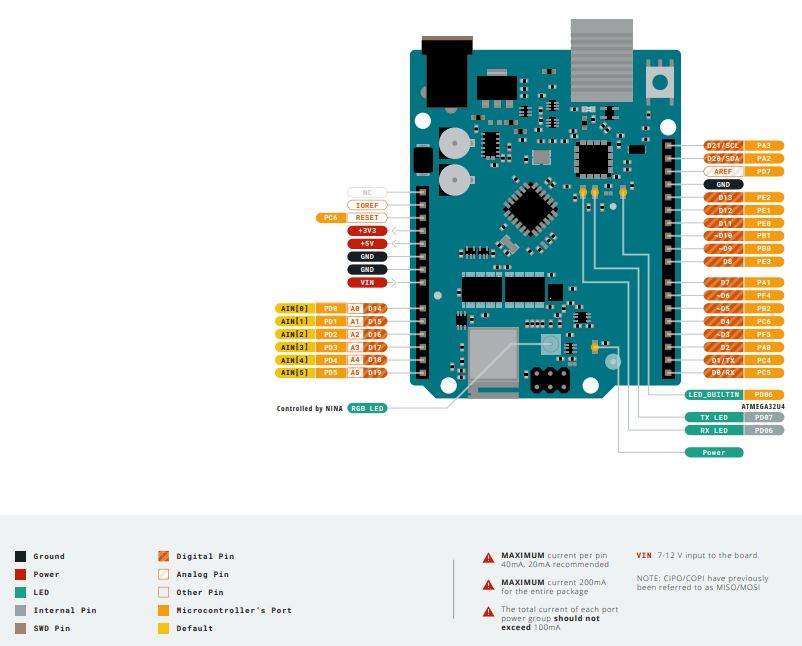

The Arduino UNO WiFi Rev.2 has 14 digital input/output pins—5 can be used as PWM outputs—6 analog inputs, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with an AC adapter or battery to get started.



Compatibility

This board has the Microchip ATmega4809 microcontroller, but thanks to the compatibility layer included in the core, you can run all the sketches made for the UNO's ATmega328P microconntroller on the ATmega4809. You can find more information about the usage of this mode in the Getting Started page of the Arduino UNO WiFi Rev.2.



Bluetooth® and BLE

The communications chipset on the Arduino UNO WiFi Rev.2 can be both a BLE and Bluetooth® client and host device. Something pretty unique in the world of microcontroller platforms. If you want to see how easy it is to create a Bluetooth® central or a peripheral device, explore the examples at our ArduinoBLE library.

Technical Specifications

Microcontroller ATmega4809 (datasheet)
Operating Voltage 5V
Input Voltage (recommended) 7 - 12V
Digital I/O Pins 14 — 5 Provide PWM Output
PWM Digital I/O Pins 5
Analog Input Pins 6
DC Current per I/O Pin 20 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 48 KB (ATmega4809)
SRAM 6,144 Bytes (ATmega4809)
EEPROM 256 Bytes (ATmega4809)
Clock Speed 16 MHz
Radio module u-blox NINA-W102 (datasheet)
Secure Element ATECC608A (datasheet)
Inertial Measurement Unit LSM6DS3TR (datasheet)
LED_BUILTIN 25
Length 68.6 mm
Width 53.4 mm
Weight 25 g
