ESP BoB Breakout Board Adapter Module for ESP32 ESP8266 Dev Boards

ESP BoB Breakout Board Adapter Module for ESP32 ESP8266 Dev Boards

$14.99 CAD
$14.99 CAD
Sale Sold Out
Shipping calculated at checkout.

NOTE: For large quantity orders of the ESP BoB with custom pricing please contact us directly.

This product has a datasheet!

This product has a 3D model!



Also available on



About this item

  • Who is BoB?: BoB stands for "Breakout Board." This product serves as a breakout board for various ESP-based microcontroller development boards. A breakout board typically exposes some or all of a device’s pins for easier access. In this ESP BoB, all pins are broken out via male and female headers, as well as screw terminals, offering maximum flexibility for prototyping and development.
  • Applications: The ESP BoB enables fast prototyping by offering multiple connection options to the pins of an ESP microcontroller development board. Male and female headers support quick connections using jumper or DuPont wires, while screw terminals provide a more secure and durable connection. The ESP BoB can be used as a standalone platform for testing simple circuits or in conjunction with a standard breadboard or prototyping perf board.
  • Compatibility: With its double row of female headers, the ESP BoB supports a wide range of ESP-based microcontroller development boards. It is compatible with the PTSolns ESP32 microWatt as well as many other ESP32 and ESP8266 development boards.
  • What’s Included: Each package includes one (1) PTSolns ESP BoB PCB, 12 3.5mm 3-Pin Screw Terminals, two (2) 3.5mm 2-Pin Screw Terminals, two (2) 2.54mm 1x20 Pin Female Header, two (2) 2.54mm 2x20 Pin Female Header, one (1) 2.54mm 1x40 Pin Male Header. The user can assemble the headers such that it best suits their needs. This is a kit, SOLDERING REQUIRED.
  • PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.



    View full details



    Product Description

    PTSolns ESP BoB breakout board for ESP32 and ESP8266 development boards, featuring screw terminals, male and female headers for easy access to all GPIO pins and flexible prototyping setup
    The ESP BoB Kit is an unassembled kit designed to interface with ESP development boards, and other similarly sized boards. BoB stands for “Breakout Board”, which is exactly what this product does.

    The central double row female headers can accept many of the common microcontrollers, up to 20 rows in length and between 8 to 10 rows spacings in width (20.32 mm, 22.86 mm, 25.40 mm). The breakouts on both sides include a footprint for a row of female header, a row of male header, and a row of screw terminals.

    The ESP BoB is compatible with the ESP32 microWatt and a range of other popular boards with similar footprints. Consult the schematics below to check if your board fits.

    This product, along with all of the PTSolns products, comes with a detailed datasheet, and other supporting material. Please view our "PTSolns Documentation Repository" to access these documents.


    All the pins - and more

    PTSolns ESP BoB breakout board with ESP32 microcontroller development board installed, demonstrating full GPIO pin access via male headers, female headers, and screw terminals for flexible prototyping and wiring

    The ESP BoB has breakouts for all the pins. It provides the user with male and female headers, as well as screw terminal connections. Due to the double row female header, the ESP BoB can accept a range of common ESP based microcontroller development boards.



    Features of the ESP BoB

    Labeled technical diagram of PTSolns ESP BoB breakout board showing compatibility with common ESP32 and ESP8266 development boards, male and female header breakouts, screw terminal breakout, dual ground (GND) plane pinouts, and top and bottom silkscreen printing
      The following are highlights of the ESP BoB breakout board. For full details please see the datasheet which can be found in our "PTSolns Documentation Repository".
      • Compatible with many common ESP based microcontroller development boards
      • Male and female header breakouts
      • Screw terminal breakout
      • Ground GND plane pinouts (2x)
      • Top and bottom side silkscreen printing



      Schematic Spacing of the

      Top view of PTSolns ESP BoB breakout board showing board dimensions and mounting hole locations, designed for ESP32 and ESP8266 development boards with clear pin breakout layout

      Make sure you ESP microcontroller development board fit - check the above schematic. The ESP BoB is compatible with the PTSolns ESP32 microWatt as well as a range of common boards.



      What's included

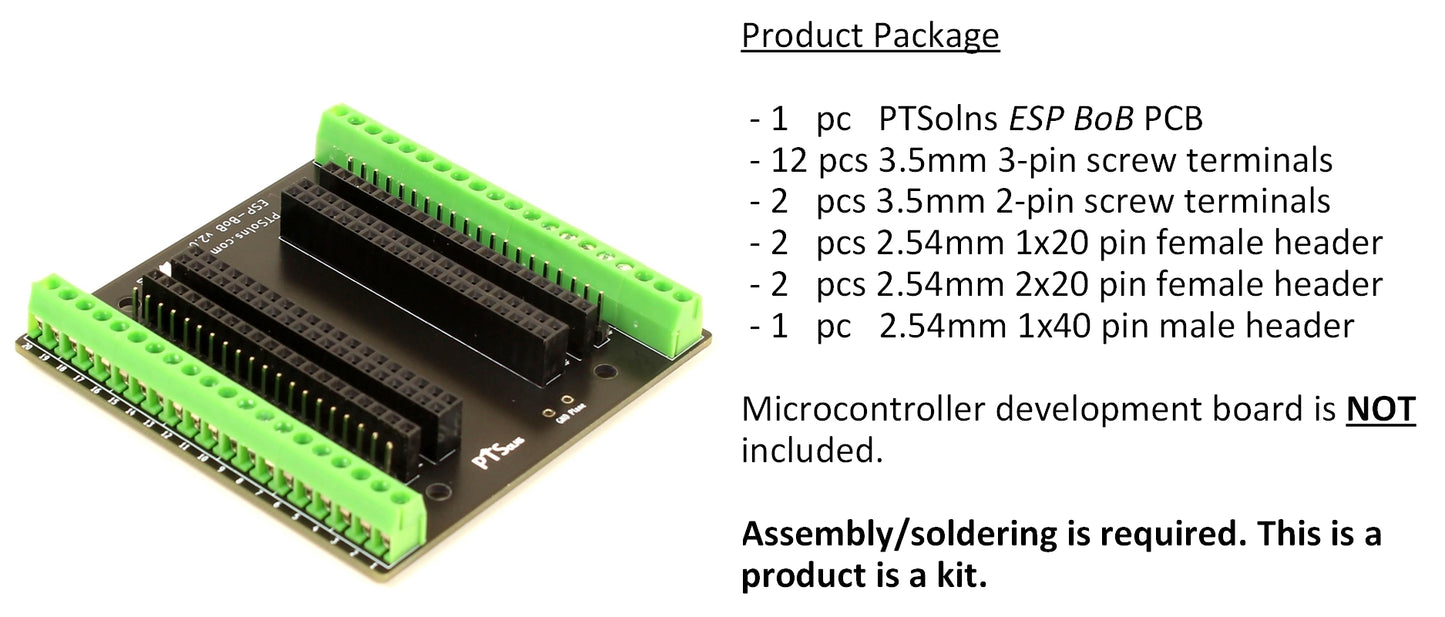

      PTSolns ESP BoB package contents including breakout board, male headers, female headers, and screw terminals for ESP32 and ESP8266 prototyping and assembly



      Other Names

      • ESP BoB
      • ESP-BoB
      • ESP Breakout Board
      • PTS-00155-111
      • PTS-00155-211

        Customer Reviews

        Based on 1 review
        100%
        (1)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        0%
        (0)
        K
        Kuma
        High Quality. Multiple Choice

        This breakout board is well-designed, appears to be of high quality, and is highly useful for rapid prototyping and DIY projects. It offers multiple connection options and supports up to 40 pins, making it compatible with various microcontroller boards, such as the ESP32.

        The board is not pre-soldered, allowing users to solder only the connection options they require. One of its key advantages is the flexibility it provides in pin spacing—it supports three different spacing configurations between the output pin arrays. This makes it adaptable to a wide range of ESP32 board layouts.

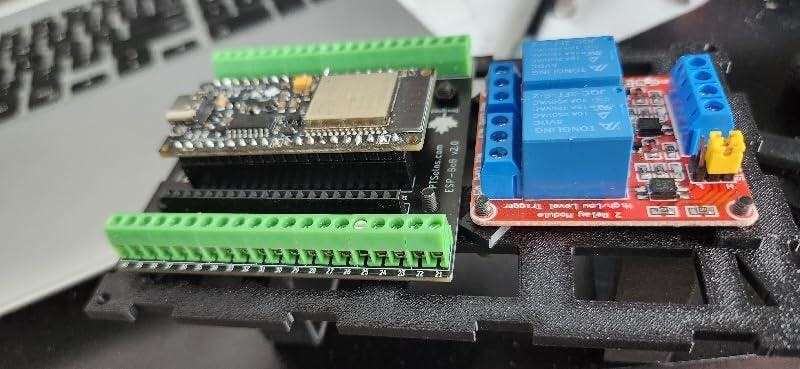

        User picture
