The PTSolns microWatt Proto is a prototyping board designed specifically for the ESP32
microWatt as part of the microWatt Family product line.

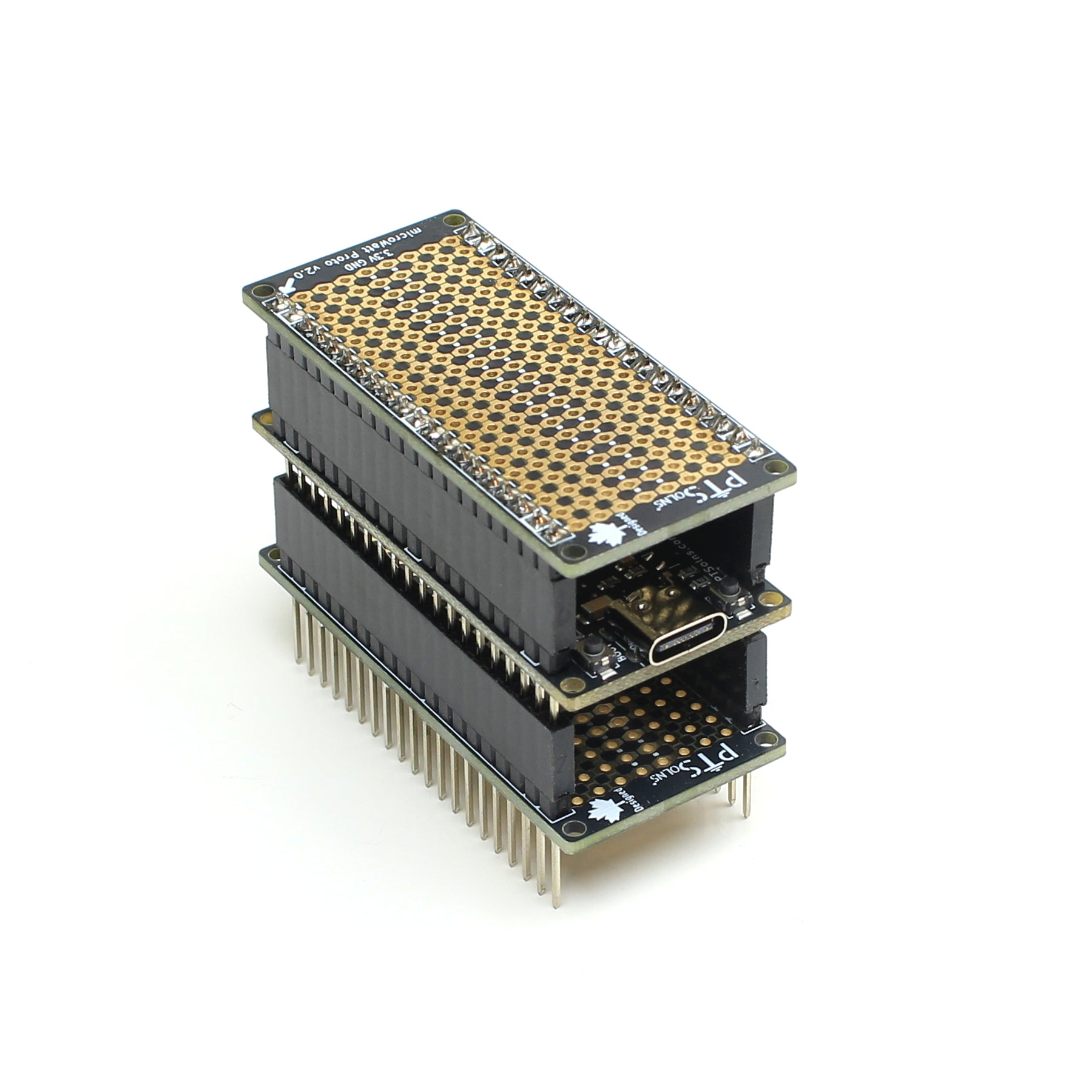

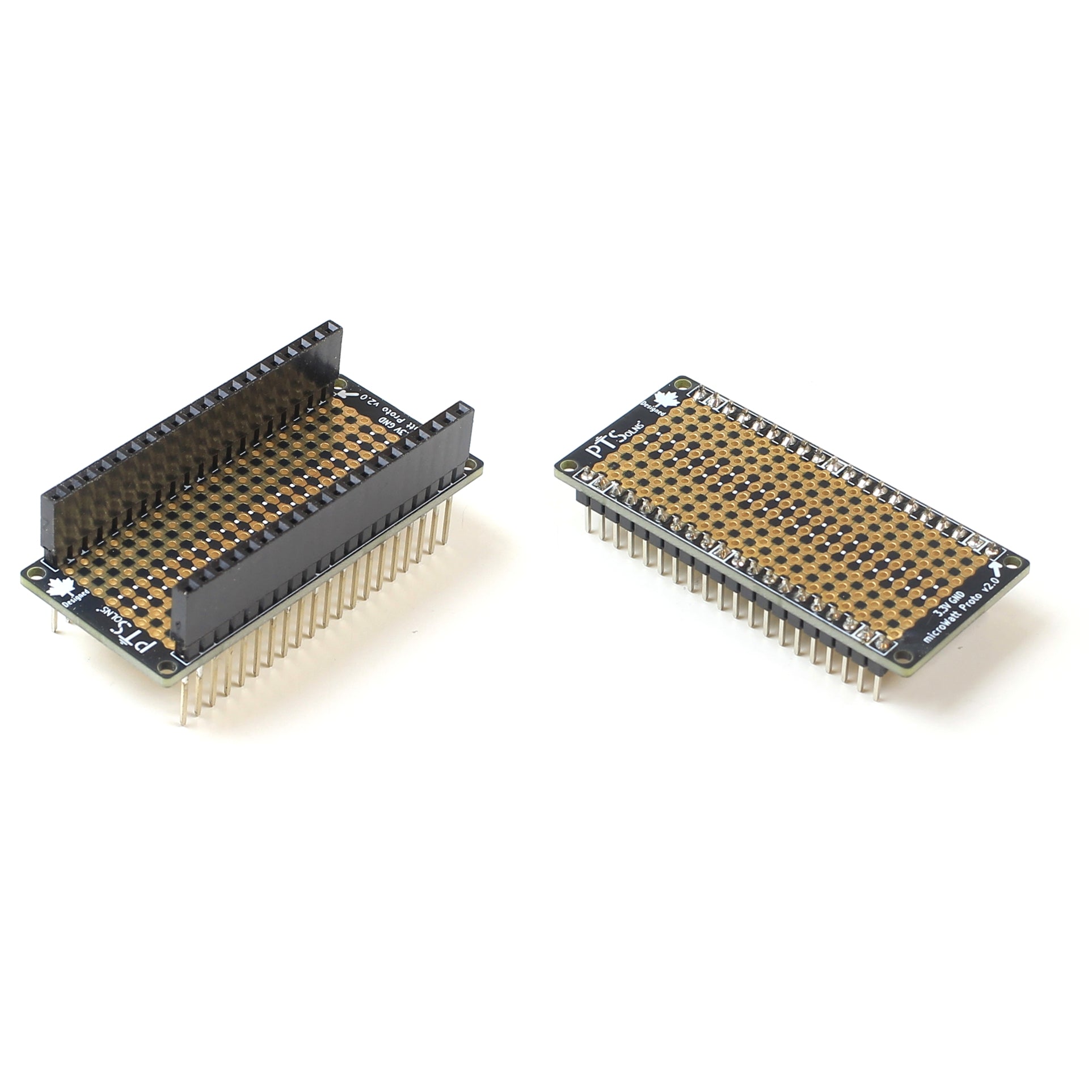

It features two central power rails providing 3.3V and GND, directly connected to the stacked ESP32 microWatt. The 3.3V rail can be electrically isolated by cutting a jumper on the back. Different header types can be assembled onto the microWatt Proto,
enabling stacking above or below the ESP32 microWatt.
Solder jumper pads span the entire board, simplifying custom connections and trace modifications. An orientation arrow is printed on one side to help ensure proper alignment.
Product Description
microWatt Family
This product is part of the microWatt Family. All the members of this series include:
- ESP32 microWatt
- microWatt Proto (this product page)
- microWatt LoRa ... coming soon
- microWatt Charger ... coming soon
Product Package
- 1 pcs PTSolns microWatt Proto
- 2 pcs 1x20 Pin stacking female headers
- 2 pcs 1x20 Pin male headers
Other Names
- microWatt Proto
- PTS-00199-111
- PTS-00199-211
