NTEA-LG Breakout Board Expansion Adapter for Nano Microcontroller Development Board

NTEA-LG Breakout Board Expansion Adapter for Nano Microcontroller Development Board

$14.99 CAD
$14.99 CAD
Sale Sold Out
Shipping calculated at checkout.

NOTE: For large quantity orders of the NTEA-LG with custom pricing please contact us directly.

This product has a datasheet!

This product has a 3D model!

This product has a tutorial:



Also available on



About this item

  • What is NTEA mean?: NTEA stands for Nano Terminal Expansion Adapter. The NTEA boards are breakout boards designed for the common Nano microcontroller development boards. Three different sizes of the NTEA boards offer different features. This board is the NTEA-LG, which is the largest footprint of the family. It offers additional male header breakouts, and a power input terminal with an optional decoupling capacitor.
  • Applications: The NTEA-Series of boards are designed for quick prototyping. Use the boards as standalone applications for simple circuits, or in conjunction with standard breadboards, perf boards, or prototyping boards. Use the NTEA boards in applications or circuits where the Nano microcontroller development board may have to be removed, which the NTEA boards makes very convenient.
  • Compatible: The NTEA-Series are compatible with all the common Nano microcontroller development boards including the PTSolns Nano Flip, the Arduino Nano, and many other similar boards.
  • What’s Included: Each package includes two (2) PTSolns NTEA-LG PCB, four (4) 2.54mm/0.1in 15 Pin Male Header (or the equivalent full length male header), four (4) 2.54mm/0.1in 15 Pin Female Header, 20 5.08mm/0.2in 3 Pin Screw Terminal, two (2) 5.08/0.2in 2 Pin Screw Terminal. The user can assemble the headers and screw terminals such that it best suits their needs. This is a kit, SOLDERING REQUIRED. Capacitor and Nano microcontroller development board not included.
  • PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.



View full details



Product Description

PTSolns NTEA-LG Nano Terminal Expansion Adapter PCB shown with labelled pin headers and terminal blocks, designed to expand the Nano microcontroller board’s prototyping capabilities; compatible with PTSolns Nano Flip, Arduino Nano, and similar Nano boards.
Part of the Canadian designed Breakout Board NTEA-Series.

NTEA stands for Nano Terminal Expansion Adapter, which come in three sizes (LG for Large, MD for Medium, and SM for Small). These boards are designed to interface with the common Nano microcontroller development board and allow for quick prototyping. The three sizes offer different features. Compatible with the PTSolns Nano Flip, Arduino Nano, and the various versions and makes of the Nano development board.

This product, along with all of the PTSolns products, comes with a detailed datasheet, and other supporting material. Please view our "PTSolns Documentation Repository" to access these documents.



NTEA-Series

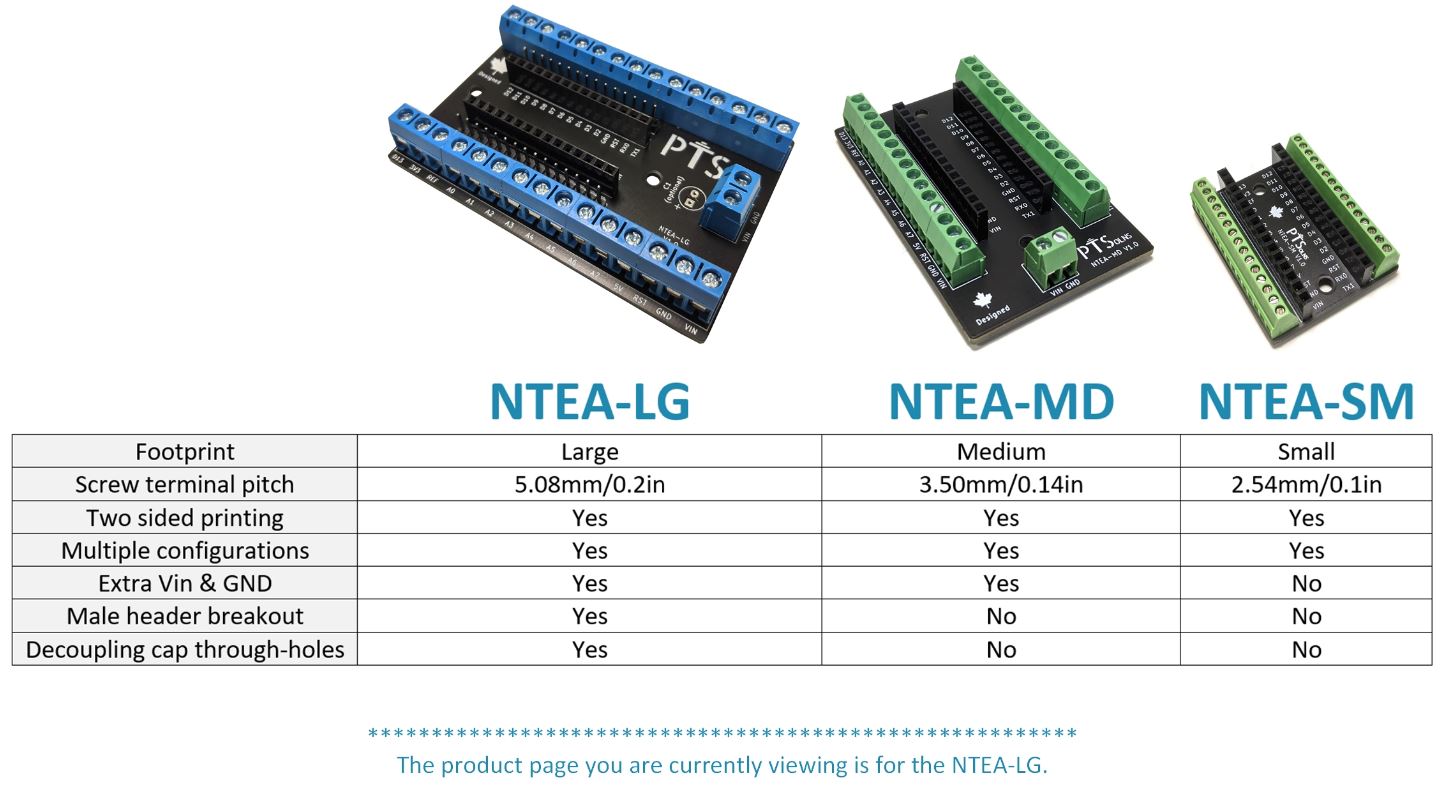

This product is part of the NTEA-Series. All the members of this series include:



Features of the NTEA-LG Nano Terminal Expansion Adapter

Technical diagram showing PTSolns NTEA-LG PCB dimensions and specifications: width, length, thickness, lead-free HASL-RoHS surface finish, female header pitch, screw terminal pitch, and mounting hole diameter.
  • PCB width: 51.9mm, PCB length: 77.6mm, PCB thickness: 1.6mm
  • PCB surface finish: Lead free HASL-RoHS
  • Male & female header pitch: 2.54mm/0.1inch
  • Screw terminal pitch: 5.08mm/0.2inch
  • Mounting hole diameter: 3.2mm



Product Package

Two complete NTEA-LG sets:

  • 2 pcs PTSolns NTEA-LG PCBs
  • 4 pcs 1x15 pin 2.54mm/0.1in male header (or equivalent)
  • 4 pcs 1x15 pin 2.54mm/0.1in female header
  • 20 pcs 3-pin 5.08mm/0.2in terminal connector
  • 2 pcs 2-pin 5.08mm/0.2in terminal connector



Other Names

  • NTEA-LG
  • Nano Terminal Expansion Adapter Large
  • PTS-00021-001
  • PTS-00021-101
  • PTS-00021-211
