• PTSolns Pico Base + Proto — expansion and prototyping board designed for the Raspberry Pi Pico. Adds enhanced functionality and prototyping space. Part of the PTSolns Pico-Series.
  • Example application using the PTSolns Pico Base + Proto. A 2004 LCD is connected to the 5V I2C bus, a 3.3V sensor is connected via QWIIC on the 3.3V I2C bus, and a Raspberry Pi Pico microcontroller development board is installed.
  • op view of the PTSolns Pico Base + Proto showing clearly labeled pinouts, dual I2C buses (3.3V and 5V), QWIIC connector, prototyping area, and header sockets for the Raspberry Pi Pico.
  • Technical diagram of the PTSolns Pico Base + Proto highlighting compatibility with RPi Pico family, dual power input (USB and up to 20V external), auto power switching, simultaneous 3.3V and 5V I2C operation, full Pico pinout access, QWIIC connector, LCD mounting holes, 30×10 prototyping grid with SMD-capable jumper pads, SOIC 2×7 breakout, seven configurable power rails, two red LEDs, and two buttons.
1 4

Raspberry Pi Pico Expansion Board (Pico Base + Proto)

Raspberry Pi Pico Expansion Board (Pico Base + Proto)

$15.99 CAD
$15.99 CAD
Sale Sold Out
Shipping calculated at checkout.

NOTE: For large quantity orders of the Pico Base + Proto with custom pricing please contact us directly.

This product has a datasheet!

This product has a 3D model!

This product has example sketches!


Also available on



About this item

  • What is the RPi Pico? The Raspberry Pi RPi Pico is a compact microcontroller development board used to control and automate electronic circuits. It’s ideal for applications like robotics, home automation, data logging, sensor monitoring, and interactive projects. The Raspberry Pi Pico is a compact microcontroller board used to control and automate electronic circuits. It’s ideal for applications like robotics, home automation, data logging, sensor monitoring, and interactive projects. To gain even more features the Pico Base + Proto is a perfect complementary accessory to the Pico family.
  • Loaded with Features: The Pico Base + Proto is packed with features. Besides the reset button, power LED, and so much more, the most notable feature are the 5V and 3.3V I2C ports. Both of these ports can be used at the same time! Therefore, you can connect a 3.3V I2C sensor module via the Qwiic connector and at the same time connect a 5V I2C LCD backpack. For a detailed description of all the features please see the Datasheet, which can be found on our “PTSolns Documentation Repository”.
  • Compatibility: The Pico Base + Proto expansion board is compatible with all members of the RPi Pico family, including: The Pico, Pico W, Pico H, Pico WH, Pico 2, and Pico 2 W.
  • What’s Included: Each package includes one (1) PTSolns Pico Base + Proto, two (2)1x20Pin Female Header, one (1) 1x40Pin Male Header (OR two (2) 1x20Pin Male Header). SOLDERING IS REQUIRED.
  • PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.



    View full details



    Product Description

    PTSolns Pico Base + Proto — expansion and prototyping board designed for the Raspberry Pi Pico. Adds enhanced functionality and prototyping space. Part of the PTSolns Pico-Series.

    The PTSolns Pico-Series are a group of expander/adapter boards designed around the Raspberry Pi Pico product line. The Pico-Series adds various features to the RPi Pico boards that take your project to the next level. The Pico Base and Pico Base + Proto are the first two products in this Series.

    NOTE: Please see the corresponding attached datasheets for full technical details.

    NOTE: For tutorials and example sketches in Arduino IDE using the Pico Base + Proto, please see our custom Github repository.



    Pico-Series

    This product is part of the Pico-Series. All the members of this series include:

    • Pico Base
    • Pico Base + Proto (this product page)



    Features of the Pico Base + Proto Expansion Board

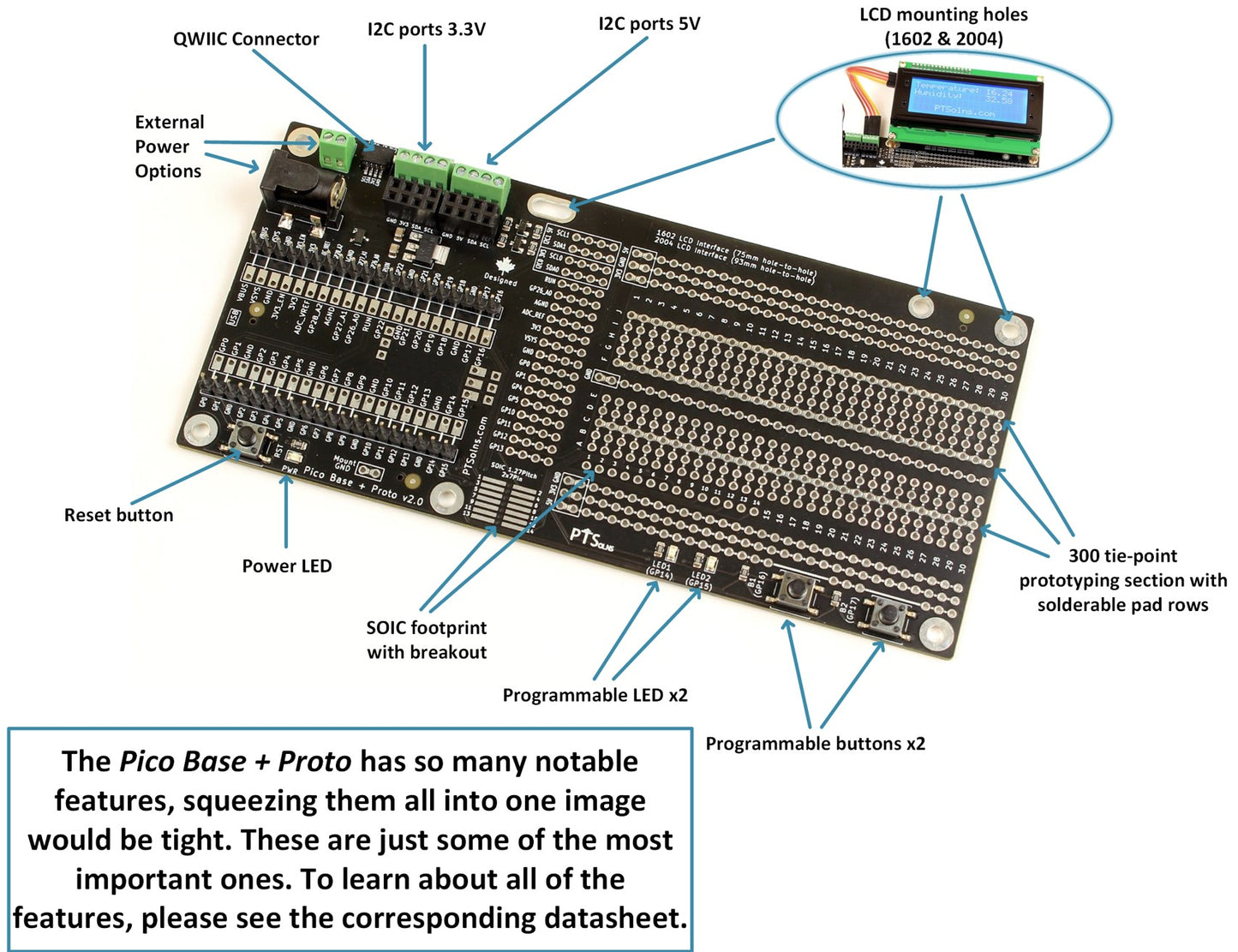

    Technical diagram of the PTSolns Pico Base + Proto highlighting compatibility with RPi Pico family, dual power input (USB and up to 20V external), auto power switching, simultaneous 3.3V and 5V I2C operation, full Pico pinout access, QWIIC connector, LCD mounting holes, 30×10 prototyping grid with SMD-capable jumper pads, SOIC 2×7 breakout, seven configurable power rails, two red LEDs, and two buttons.
    The Pico Base + Proto has notable features:
    • Compatible with RPi Pico family
    • Power LED and reset button.
    • Externally power board with female jack or 2-pin screw terminal. Acceptable external input voltage up to 20V.
    • When both USB and external power source a present, USB will be used and external is automatically disconnected.
    • Can operate 3V3 and 5V I2C on port 0 and port 1 simultaneously via I2C interfaces and QWIIC connector.
    • Pinout of all Pico pins, including debug pins.
    • Interface for common 1602 LCD and 2004 LCD via two additional mounting holes along the top edge of the PCB.
    • Breadboard-like prototyping section with 30 rows, and 10 columns. 4-Pin breakout of various important Pico pins.
    • Prototyping section has jumper pads so that adjacent rows can be connected. Also capable to solder SMD components on jumper pads.
    • Seven configurable power rails via jumpers.
    • 2x7 Pin SOIC breakout with 1.27mm pitch.
    • Two programmable red LEDs and buttons.



    Package Contents

    The following are contained in the package:

    • 1x PTSolns Pico Base + Proto
    • 2x 1x20 Pin Female Header Pin
    • 1x 1x40 Pin Male Header Pin OR 2x 1x20 Pin Male Header Pin



    Other Names

    • Pico Base + Proto
    • Pico Base Plus Proto
    • PTS-00158-101
    • PTS-00158-201
