Pico BoB Breakout Board Adapter Module for Raspberry Pi Pico Family

Pico BoB Breakout Board Adapter Module for Raspberry Pi Pico Family

Regular price $14.99 CAD
Regular price Sale price $14.99 CAD
Sale Sold Out
Shipping calculated at checkout.

NOTE: For large quantity orders of the Pico BoB with custom pricing please contact us directly.


This product has a datasheet!

This product has a 3D model!



Also available on



About this item

  • Who is BoB?: BoB stands for "Breakout Board." This product serves as a breakout board for the Raspberry Pi RPi Pico microcontroller development boards. A breakout board typically exposes some or all of a device’s pins for easier access. In this Pico BoB, all pins are broken out via male and female headers, as well as screw terminals, offering maximum flexibility for prototyping and development.
  • Applications: The Pico BoB enables fast prototyping by offering multiple connection options to the pins of a Pico microcontroller development board. Male and female headers support quick connections using jumper or DuPont wires, while screw terminals provide a more secure and durable connection. The Pico BoB can be used as a standalone platform for testing simple circuits or in conjunction with a standard breadboard or prototyping perf board.
  • Compatibility: The Pico BoB supports all the members of the Raspberry Pi RPi Pico family, including the Pico, Pico H, Pico W, Pico WH, Pico 2, and Pico 2 W.

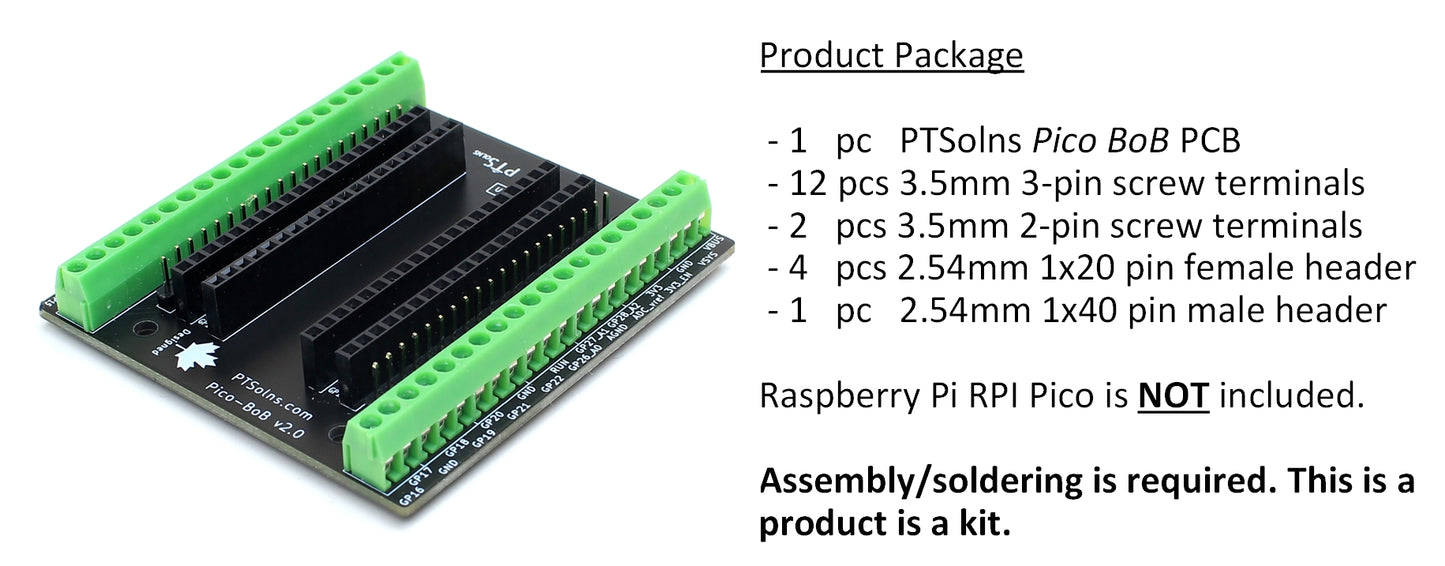

  • What’s Included: Each package includes one (1) PTSolns Pico BoB PCB, 12 3.5mm 3-Pin Screw Terminals, two (2) 3.5mm 2-Pin Screw Terminals, four (4) 2.54mm 1x20 Pin Female Header, one (1) 2.54mm 1x40 Pin Male Header. The user can assemble the headers such that it best suits their needs. This is a kit, SOLDERING REQUIRED.
  • PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.



View full details



Product Description

PTSolns Pico BoB breakout board adapter for Raspberry Pi Pico, featuring male headers, female headers, and screw terminals for full pin access and flexible prototyping
The Pico BoB is kit designed to interface with the Raspberry Pi RPi Pico-series family of microcontroller boards. BoB stands for “Breakout Board”, which is exactly what this product does. All of the pins of the Pico are made available using the Pico BoB. The Pico can be inserted into two central rails of female headers. The breakouts on both sides include a footprint for a row of female header, a row of male header, and a row of screw terminals.

This product, along with all of the PTSolns products, comes with a detailed Datasheet, and other supporting material. Please view our "PTSolns Documentation Repository" to access these documents.

Features of the Pico BoB

Labeled technical diagram of PTSolns Pico BoB showing compatibility with all Raspberry Pi Pico boards, male/female/screw terminal pin breakouts, dual GND plane pinouts, top and bottom silkscreen, and four mounting holes
The following are highlights of the Pico BoB Breakout Board. For full details please see the datasheet which can be found in our "PTSolns Documentation Repository".
  • Compatible with all Raspberry Pi RPi Pico boards
  • Male, female, and screw terminal breakouts of all RPi Pico pins
  • Top and bottom side silkscreen printing
  • Four mounting holes
  • Ground GND plane pinout (2x)



    Prototyping with the RPi Pico made easy

      PTSolns Pico BoB breakout board with Raspberry Pi Pico installed, demonstrating full pin access via male headers, female headers, and screw terminals for flexible prototyping and wiring

      Prototyping with the Raspberry Pi Pico has never been easier. With this terminal breakout board all the Pico pins are easily available via male headers, female headers, and screw terminals.



      Other Names

      • Pico BoB
      • Pico-BoB
      • Pico Breakout Board
      • PTS-00198-111
      • PTS-00198-211
