• Three PTSolns Proto-Half prototyping boards included in basic package.
  • PTSolns Proto-Half prototyping perf board with silkscreen printing on both sides showing dashed white lines for electrical connections, separate ground and negative rails, two power input methods including screw terminal and female power jack, four M3 mounting holes designed for grounding and stacking multiple boards, multiple configurable power rails, and a central rail that can be connected to ground.
  • Front view of the PTSolns Proto-Half prototyping perf board showing silkscreen printing on both sides, multiple power rails, screw terminal and female power jack power inputs, and four M3 mounting holes near the corners.
  • PTSolns Proto-Half prototyping board with silkscreened connection lines, multiple configurable power rails, screw terminal and power jack inputs, separate ground and negative rails, and four mounting holes for grounding or stacking.

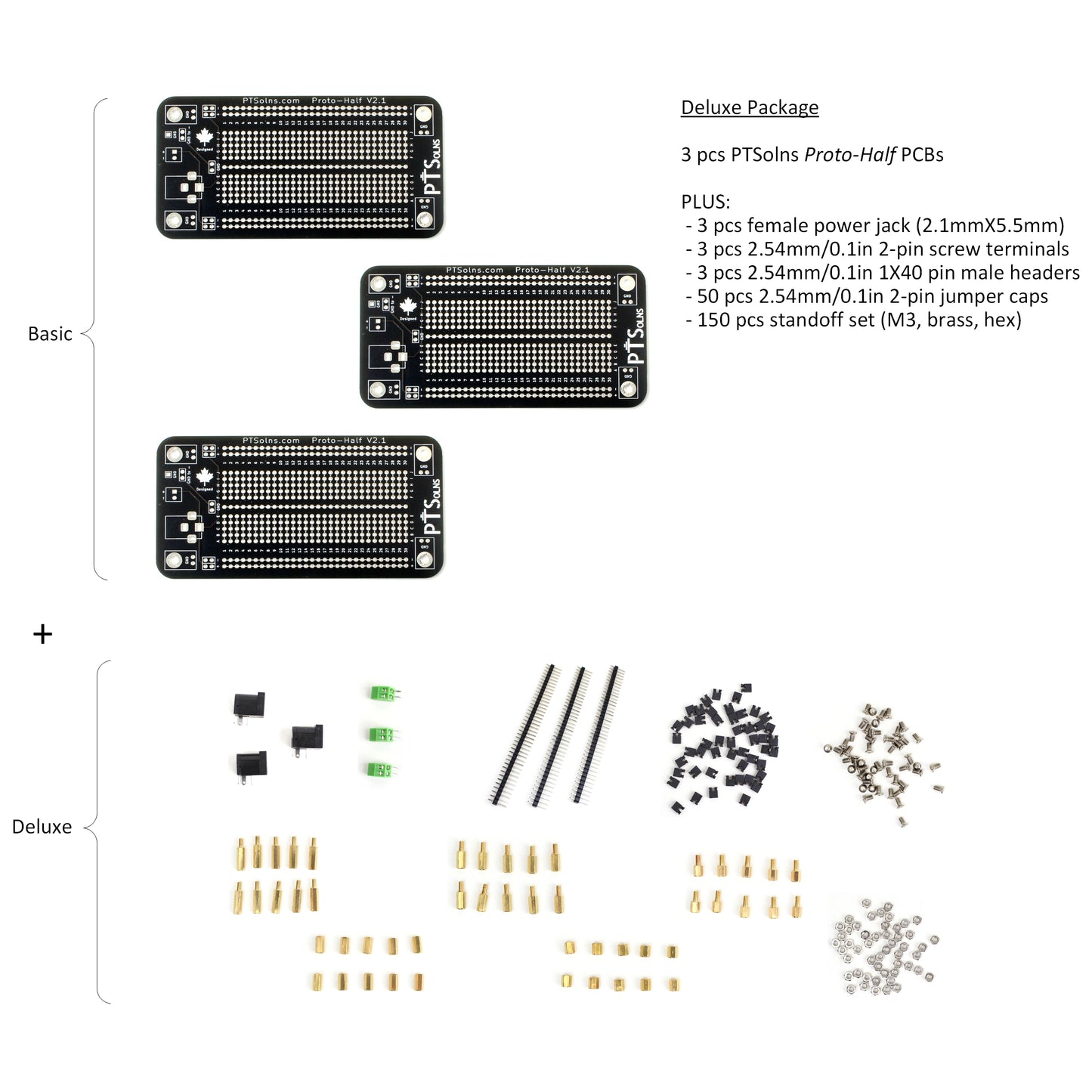

  • PTSolns Proto-Half deluxe package contents: three prototyping PCBs plus assorted components for assembly.
1 4

Proto-Half Prototyping Solderable Perf Breadboard PCB

Proto-Half Prototyping Solderable Perf Breadboard PCB

$10.99 CAD
$10.99 CAD
Sale Sold out
Shipping calculated at checkout.
Package

NOTE: For large quantity orders of the Proto-Half with custom pricing please contact us directly.

This product has a datasheet!

This product has a 3D model!

This product has a Fritzing model!

This product has a 3D print accessory!

This product has a tutorial:


Also available on



About this item

  • Prototyping: The Proto-Half prototyping board is designed to help transition circuits from a solderless breadboard to a permanent, soldered solution. With a layout that resembles traditional breadboards, it makes the process of finalizing and securing your project for long-term use much more efficient. Ideal for electronics makers, hobbyists, and engineers, the Proto-Half is a reliable board for creating durable and professional-looking circuit prototypes.
  • Configurable: The half-sized Proto-Half prototyping perf board features two positive and two negative power rails, plus a central rail - all independently configurable to suit your project’s specific needs.
  • Packed with Features: The Proto-Half offers 450 tie-points, versatile power options, dual-sided clear silkscreen labeling, four mounting holes (which can be grounded), and robust thick copper traces. Refer to the datasheet for full technical specifications and current ratings.
  • What’s Included: For the BASIC PACKAGE - Each package includes three (3) PTSolns Proto-Half half-sized prototyping perf breadboards plus the deluxe package. Please see the images for a full list of contents. For the DELUXE PACKAGE - Each package includes three (3) PTSolns Proto-Half half-sized prototyping perf breadboards plus the deluxe package. Please see the images for a full list of contents.
  • PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.



    View full details



    Product Description

    PTSolns Proto-Half prototyping perf board with silkscreen printing on both sides showing dashed white lines for electrical connections, separate ground and negative rails, two power input methods including screw terminal and female power jack, four M3 mounting holes designed for grounding and stacking multiple boards, multiple configurable power rails, and a central rail that can be connected to ground.
    The Proto-Series is a family of solderable prototyping perf boards / breadboards with unique features, such as:
    • Silkscreen printing on both sides. Dashed white lines indicate electrical connection.
    • Separate ground and negative, which can be connected.
    • 2 power-in methods: A) screw terminal, B) female power jack.
    • 4 x M3 mounting holes: A) able to be separately grounded, B) able to stack multiple boards.
    • Multiple power rails, which can be connected in various configurations.
    • Central rail, which can be connected to ground.
      The Proto-Series prototyping boards can be used in a range of applications, including:
      • Prototyping your own circuit. Your circuit design from breadboard to protoboard.
      • Interfacing microcontroller development boards (such as the Nano, or the ESP32)
      • Data logging and other sensor data gathering
      • Educational
      • ... Tinkering!
        The Proto-Full, Proto-Half and all of the PTSolns products come with full datasheets and other supporting materials such as 3D models, Fritzing models, schematics, tutorials, and much more. All of these are freely available on our "PTSolns Documentation Repository".

        Proto-Series

        This product is part of the Proto-Series. All the members of this series include:



        Features of the Proto-Half

        PTSolns Proto-Half prototyping board with silkscreened connection lines, multiple configurable power rails, screw terminal and power jack inputs, separate ground and negative rails, and four mounting holes for grounding or stacking.

        The following are highlights of the Proto-Half. For full details please see the datasheet which can be found in our "PTSolns Documentation Repository".

        • Two power-in methods: A) screw terminal, B) female power jack.
        • Positive/negative power rails (2 each) and central rail are disconnected by default. Various configurations can be realized by soldering across the respective 2-pin jumpers.
        • Canadian designed.
        • Ground and negative terminals are treated separately, and by default are not enabled. The user has the options to:
          • Connect the central rail to ground (via 2-pin jumper)
          • Access the ground-out pin
          • Connect the ground to the negative (via 2-pin jumper)
        • Silkscreen printing on both sides.
        • Electrical connections are shown by dashed white silkscreen printed lines. The layout of the Proto-Half is similar to the traditional breadboard. That is, rows of five are connected, as well as long sections of power rails.
        • Four mounting holes can be separately grounded (see second image for grounding options). Mounting holes can also be used to stack multiple boards.
        • Lead-free surface finish RoHS.

                Endless Applications

                Example application of Proto-Series boards showing rapid prototyping from breadboard to permanent protoboard. Demonstrates easy interfacing with microcontrollers like Nano and Pico, plus sensor modules using screw terminals and headers.

                Rapid Prototyping

                Realize your circuit design and make it quickly using the Proto-Full and Proto-Half prototyping boards. With the configuration options the user can utilize the rails and power input as best fit their design requirements.

                From Breadboard to Protoboard

                Move your project from a temporary breadboard over to a permanent installation on a prototyping perf board. The Proto-Series boards make this easy and efficient.

                Interface with Modules

                The Proto-Series is versatile and can easily interface with microcontroller development boards such as the Nano, Pico, etc. Interface sensor modules via screw terminals or headers quickly.



                Deluxe Package (if selected)

                Deluxe package contents including three female power jacks, three 2-pin screw terminals, three 1x40 pin male headers, fifty 2-pin jumper caps, and one hundred fifty brass M3 hex standoffs.
                The Deluxe package includes:
                • 3 pcs female power jack (2.1mm x 5.5mm)
                • 3pcs 2.54mm/0.1in 2-pin screw terminal
                • 3pcs 2.54mm/0.1in 1x40 pin male header
                • 50 pcs 2.54mm/0.1in 2-pin jumper caps
                • 150 pcs standoff set (M3, brass, hex)

                Technical Specifications

                Dimensions  116.8mm long by 58.4mm wide, 1.6mm thick
                Mounting hole  Fits M3 (3.2mm) hardware, with 6.4mm copper pad
                Mounting hole spacing 101.6mm and 43.2mm, centre to centre
                Pitch of tie-point 2.54mm/0.1in (aka "100 thou")
                Surface finish Lead free HASL-RoHS



                Other Names

                • Proto-Half
                • PTS-00078-001
                • PTS-00078-101
                • PTS-00079-001
                • PTS-00079-101
                • PTS-00079-201
