Proto-Mix Prototyping Solderable Perf Breadboard PCB

Proto-Mix Prototyping Solderable Perf Breadboard PCB

$11.99 CAD
$11.99 CAD
Sale Sold Out
Shipping calculated at checkout.
Package

NOTE: For large quantity orders of the Proto-Mix with custom pricing please contact us directly.

Proto-Full

Proto-Half



Also available on

Proto-Full

Proto-Half



About this item

  • Prototyping: The Proto-Half and Proto-Full prototyping boards are designed to help transition circuits from a solderless breadboard to a permanent, soldered solution. With a layout that resembles traditional breadboards, it makes the process of finalizing and securing your project for long-term use much more efficient. Ideal for electronics makers, hobbyists, and engineers, the Proto-Half and Proto-Full are reliable boards for creating durable and professional-looking circuit prototypes.
  • Configurable: The half-sized Proto-Half prototyping perf board features two positive and two negative power rails, plus a central rail - all independently configurable to suit your project’s specific needs. The full-sized Proto-Full prototyping perf board features four configurable positive and four negative power rails, plus two central rails.
  • Packed with Features: The Proto-Half offers 450 tie-points, versatile power options, dual-sided clear silkscreen labeling, four mounting holes (which can be grounded), and robust thick copper traces. Refer to the datasheet for full technical specifications and current ratings. The Proto-Full offers everything the Proto-Half offers but instead has 930 tie-points.
  • What’s Included: For the BASIC PACKAGE - Each package includes two (2) PTSolns Proto-Half half-sized prototyping perf breadboards, and one (1) PTSolns Proto-Full full-sized prototyping perf breadboard.  For the DELUXE PACKAGE - Each package includes two (2) PTSolns Proto-Half half-sized prototyping perf breadboards, and one (1) PTSolns Proto-Full full-sized prototyping perf breadboard plus the deluxe package. Please see the images for a full list of contents.
  • PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.



    View full details



    Product Description

    Combination product featuring both the PTSolns Proto-Half and Proto-Full prototyping boards stacked or placed side-by-side. Shows the benefits of extended prototyping area and flexible power rails from both boards used together for advanced circuit development.
    The Proto-Series is a family of solderable prototyping perf boards / breadboards with unique features, such as:
    • Silkscreen printing on both sides. Dashed white lines indicate electrical connection.
    • Separate ground and negative, which can be connected.
    • 2 power-in methods: A) screw terminal, B) female power jack.
    • 4 x M3 mounting holes: A) able to be separately grounded, B) able to stack multiple boards.
    • Multiple power rails, which can be connected in various configurations.
    • Central rail, which can be connected to ground.
      The Proto-Series prototyping boards can be used in a range of applications, including:
      • Prototyping your own circuit. Your circuit design from breadboard to protoboard.
      • Interfacing microcontroller development boards (such as the Nano, or the ESP32)
      • Data logging and other sensor data gathering
      • Educational
      • ... Tinkering!
        The Proto-Full, Proto-Half and all of the PTSolns products come with full datasheets and other supporting materials such as 3D models, Fritzing models, schematics, tutorials, and much more. All of these are freely available on our "PTSolns Documentation Repository".

        Proto-Series

        This product is part of the Proto-Series. All the members of this series include:



        Features of the Proto-Half

        PTSolns Proto-Half prototyping board with silkscreened connection lines, multiple configurable power rails, screw terminal and power jack inputs, separate ground and negative rails, and four mounting holes for grounding or stacking.

        The following are highlights of the Proto-Half. For full details please see the datasheet which can be found in our "PTSolns Documentation Repository".

        • Two power-in methods: A) screw terminal, B) female power jack.
        • Positive/negative power rails (2 each) and central rail are disconnected by default. Various configurations can be realized by soldering across the respective 2-pin jumpers.
        • Canadian designed.
        • Ground and negative terminals are treated separately, and by default are not enabled. The user has the options to:
          • Connect the central rail to ground (via 2-pin jumper)
          • Access the ground-out pin
          • Connect the ground to the negative (via 2-pin jumper)
        • Silkscreen printing on both sides.
        • Electrical connections are shown by dashed white silkscreen printed lines. The layout of the Proto-Half is similar to the traditional breadboard. That is, rows of five are connected, as well as long sections of power rails.
        • Four mounting holes can be separately grounded (see second image for grounding options). Mounting holes can also be used to stack multiple boards.
        • Lead-free surface finish RoHS.

        Features of the Proto-Full

        PTSolns Proto-Half prototyping board with screw terminal and power jack inputs, multiple configurable power rails, mounting holes, and silkscreen markings indicating connections.

        The following are highlights of the Proto-Full. For full details please see the datasheet which can be found in our "PTSolns Documentation Repository".

        • Two power-in methods: A) screw terminal, B) female power jack.
        • Positive/negative power rails (4 each) and both central rails are disconnected by default. Various configurations can be realized by soldering across the respective 2-pin jumpers.
        • Canadian designed.
        • Ground and negative terminals are treated separately, and by default are not enabled. The user has the options to:
          • Connect one or both of the central rails to ground (via 2-pin jumper)
          • Access the ground-out pin
          • Connect the ground to the negative (via 2-pin jumper)
        • Electrical connections are shown by dashed white silkscreen printed lines. The layout of the Proto-Full is similar to the traditional breadboard. That is, rows of five are connected, as well as long sections of power rails.
        • There are four positive power rails, four negative power rails, and two central rails. Any of these can be connected (via 2-pin jumper) to realize rails that span the entire board.
        • Silkscreen printing on both sides.
        • Four mounting holes can be separately grounded (see second image for grounding options). Mounting holes can also be used to stack multiple boards.
        • Lead-free surface finish RoHS.

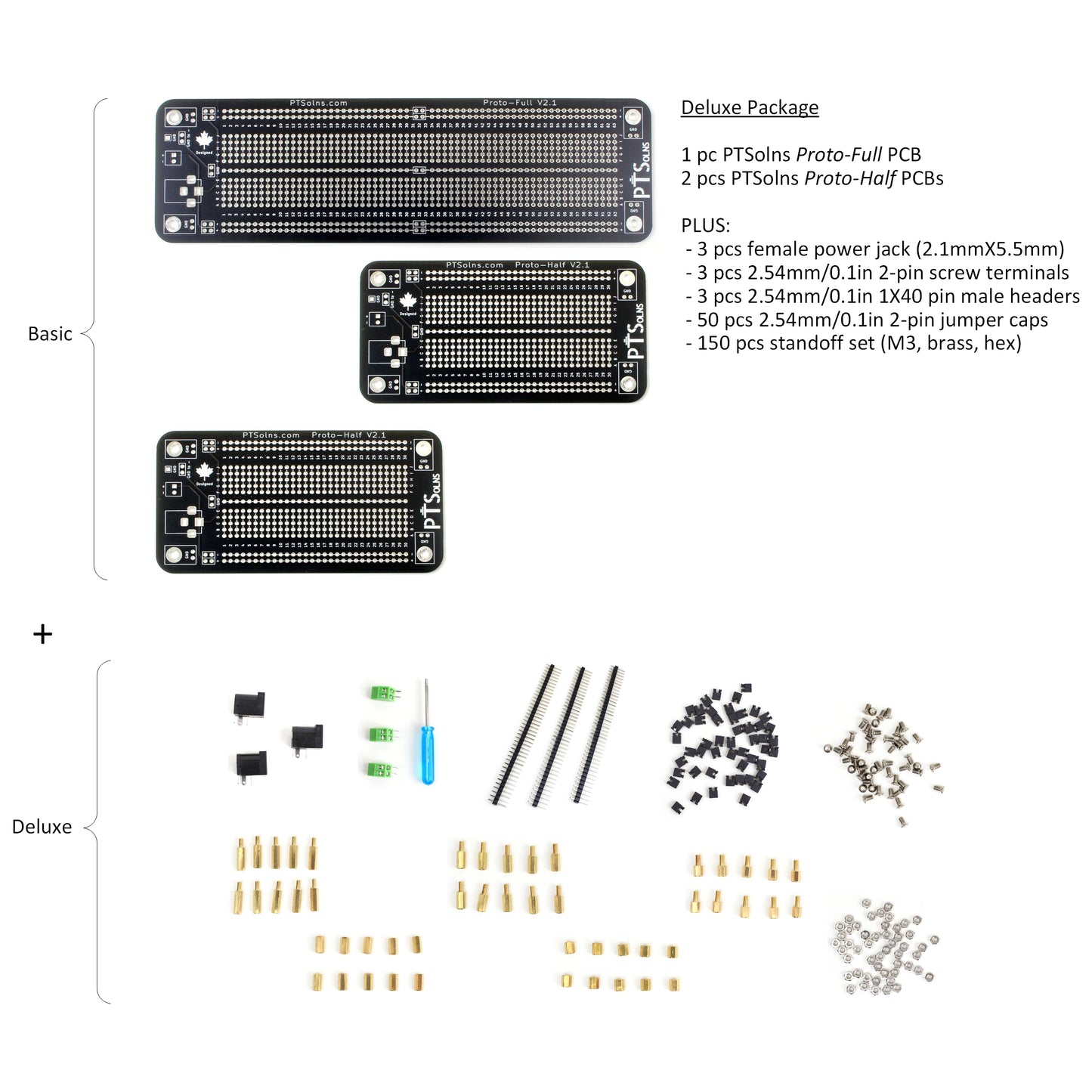

        Deluxe Package (if selected)

        Deluxe package contents showing three female power jacks, three 2-pin screw terminals, three 1x40 pin male headers, fifty 2-pin jumper caps, and a set of one hundred fifty brass hex standoffs for prototyping assembly.
        The Deluxe package includes:
        • 3 pcs female power jack (2.1mm x 5.5mm)
        • 3pcs 2.54mm/0.1in 2-pin screw terminal
        • 3pcs 2.54mm/0.1in 1x40 pin male header
        • 50 pcs 2.54mm/0.1in 2-pin jumper caps
        • 150 pcs standoff set (M3, brass, hex)

        Technical Specifications

        Dimensions of the Proto-Full 200.7mm long by 58.4mm wide, 1.6mm thick
        Dimensions of the Proto-Half 116.8mm long by 58.4mm wide, 1.6mm thick
        Mounting hole  Fits M3 (3.2mm) hardware, with 6.4mm copper pad
        Mounting hole spacing for Proto-Full 185.4mm and 43.2mm, centre to centre
        Mounting hole spacing for Proto-Half 101.6mm and 43.2mm, centre to centre
        Pitch of tie-point 2.54mm/0.1in (aka "100 thou")
        Surface finish Lead free HASL-RoHS



        Other Names

        • Proto-Mix
        • PTS-00076-001
        • PTS-00076-101
        • PTS-00077-001
        • PTS-00077-101
