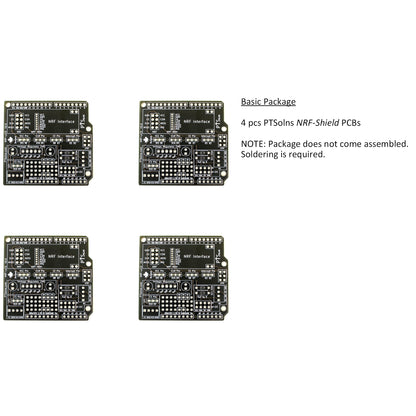

• PTSolns NRF-Shield package contents showing four PCBs.

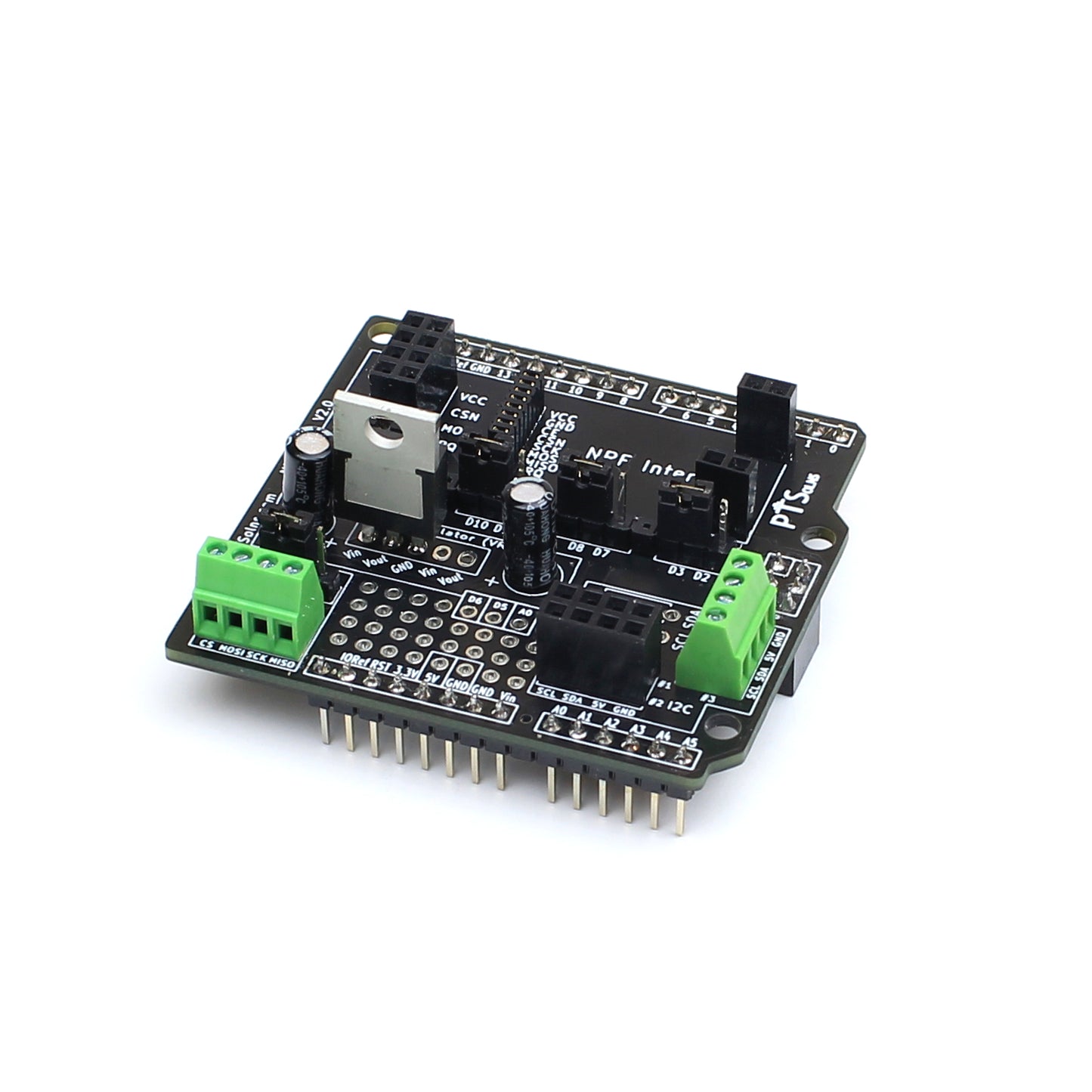

  • PTSolns NRF-Shield for Arduino Uno R3 form factor, designed to easily add Nordic nRF24L01+ RF communication modules. The shield features slots for common nRF24L01+ modules (Mini, Standard, +PA+LNA), power options from 3.3V microcontroller pin or external supply, hardware selection pins for flexible coding, and supports up to three I2C devices at 5V logic (3.3V for Due). Canadian designed with full Arduino Uno R3, Mega, Leonardo, Due compatibility.
  • PTSolns NRF-Shield for Arduino Uno R3 form factor, supports Nordic nRF24L01+ modules, powers transceiver from 3.3V or external supply, hardware selection pins, interfaces up to three I2C devices at 5V (3.3V for Due), Canadian designed.

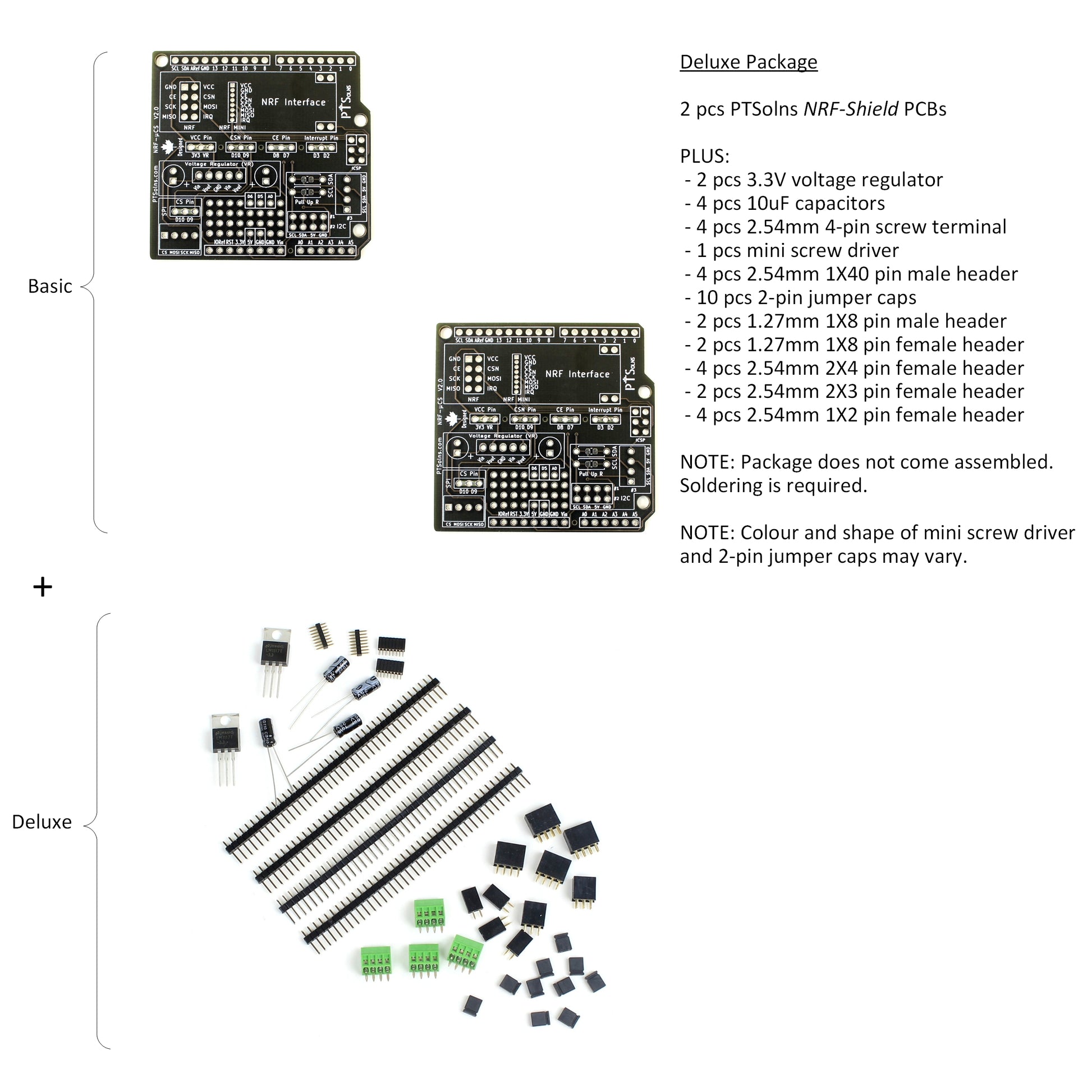

  • PTSolns NRF-Shield Deluxe package contents showing two PCBs and components for assembly.
1 3

NRF-Shield nRF24L01 RF PCB Microcontroller Shield for Arduino Uno

NRF-Shield nRF24L01 RF PCB Microcontroller Shield for Arduino Uno

$13.99 CAD
$13.99 CAD
Sale Sold Out
Shipping calculated at checkout.
Package

NOTE: For large quantity orders of the NRF-Shield with custom pricing please contact us directly.

This product has a datasheet!

This product has a video!

This product has a 3D model!

This product has a tutorial:


Also available on



About this item

  • What’s an Uno Shield?: An Uno shield is an add-on board that plugs (stacks) directly into an Uno, expanding its functionality with additional features like motor drivers, sensors, or communication interfaces. It aligns with the Uno's pin layout, making it easy to stack and integrate without extra wiring. With this NRF-Shield, you can add RF communication via the Nordic nRF24L01+ family of modules (mini, standard, +PA+LNA) to your project.
  • Compatibility: The NRF-Shield is designed not just for the Uno microcontroller development board, but for any board that shares the same footprint. This includes the Uno R3, Uno R4, Leonardo, Mega, and many others. Although the NRF-Shield is stackable, it is recommended, for improved RF quality, to keep the NRF-Shield at the top of the stack.
  • Packed with Features: The NRF-Shield is unlike any other. It is packed with features. The NRF interface allows to add any of the three common nRF24L01+ modules (mini, standard, +PA+LNA). Onboard is also an I2C interface, an SPI interface, and a prototyping section. For a full description of these features please see the Datasheet, which can be found on our “PTSolns Documentation Repository”.
  • What’s Included: For the BASIC Package - Each package includes four (4) PTSolns NRF-Shield. For the DELUXE Package - Each package includes two (2) PTSolns NRF-Shield plus the Deluxe Package. The *Deluxe* package comes with useful hardware to assemble the shield. See product image for details. SOLDERING IS REQUIRED.
  • PTSolns Customer Support & Resources: We’re here to help. Contact PTSolns support for assistance or technical questions. Every PTSolns product is backed by our comprehensive resource library, including datasheets, schematics, 3D models, Fritzing files, and tutorials. All supporting material is freely available on our “PTSolns Documentation Repository”.



    View full details



    Product Description

    PTSolns NRF-Shield for Arduino Uno R3 form factor, designed to easily add Nordic nRF24L01+ RF communication modules. The shield features slots for common nRF24L01+ modules (Mini, Standard, +PA+LNA), power options from 3.3V microcontroller pin or external supply, hardware selection pins for flexible coding, and supports up to three I2C devices at 5V logic (3.3V for Due). Canadian designed with full Arduino Uno R3, Mega, Leonardo, Due compatibility.
    The NRF-Shield is part of the Canadian designed Shield-Series. This shield allows the user to easily add RF communication to their project. Notable features of the prototyping Uno shield include:
    • Interface any of the common Nordic nRF24L01+ transceiver modules (Mini, Standard, +PA+LNA).
    • Power transceiver from microcontroller 3.3V pin, or from external supply.
    • Compatible with Arduino Uno R3, Mega, Leonardo, Due, and other similar microcontrollers.
    • Interface up to three separate I2C devices at 5V (3.3V if using the Due).
    • Hardware selection pins to allow for code flexibility.
      The NRF-Shield is compatible with the PTSolns Uno R3+, other branded Uno R3, Uno R4, Mega, and any other microcontroller development board with the same form factor.

      Like all PTSolns products, the NRF-Shield comes with a datasheet. This, along with other supporting material, can be found on our "PTSolns Documentation Repository".



      Shield-Series

      This product is part of the Shield-Series. All the members of this series include:



      Features of the NRF-Shield

      PTSolns NRF-Shield for Arduino Uno R3 form factor, supports Nordic nRF24L01+ modules, powers transceiver from 3.3V or external supply, hardware selection pins, interfaces up to three I2C devices at 5V (3.3V for Due), Canadian designed.

      The NRF-Shield for the Uno, or similar, development board is packed with features. To learn about all the features packed into this prototyping board, the user is referred to the Datasheet, which can be found on our "PTSolns Documentation Repository".



      Example Application

      NRF-Shield Uno R3 R4 microcontroller development board arduino compatible nRF24L01+ PA+LNA nordic RF

      PTSolns Uno R3+ with nRF24L01+PA+LNA, with temperature sensor connected via I2C bus, as sender node. Arduino Uno R3 with NRF24L01+ and LCD printing output as receiver node.



      Deluxe Package (if selected)

      Contents of the PTSolns NRF-Shield Deluxe Kit: voltage regulators, smoothing capacitors, screw terminals, male and female headers, and jumper caps; soldering required.
      The Deluxe kit includes:
      • 2 pcs 3.3V voltage regulator
      • 4 pcs 10µF smoothing capacitor
      • 4 pcs 2.54mm 4-pin screw terminals
      • 4 pcs 2.54mm 1X40 pin male header
      • 10 pcs 2.54mm 2-pin jumper caps (colour may vary)
      • 2 pcs 1.27mm 1X8 pin male
      • 2 pcs 1.27mm 1x8 pin female header
      • 4 pcs 2.54mm 2X4 pin female header
      • 2 pcs 2.54mm 2X3 pin female header
      • 4 pcs 2.54mm 1X2 pin female header
        Note: The NRF-Shield Deluxe package is a kit. Soldering is required.

        Technical Specifications

        Compatibility Arduino Uno R3, Mega, Leonardo, Due, other similar microcontrollers
        RF transceiver footprint NRF24L01+ (Mini, Standard, +PA+LNA)
        Dimension 56.2mm long by 53.5mm wide, 1.6mm thick
        I2C interfaces 3x @ 5V (3.3V if using Due)
        Powering of transceiver A) Onboard 3.3V pin, B) Externally using onboard voltage regulator footprint
        Hardware selection pins CSN, CE, Interrupt
        SPI pinout interface Yes



        Other Names

        • NRF-Shield
        • nRF24L01 Shield
        • PTS-00139-001
        • PTS-00139-101
        • PTS-00154-001
        • PTS-00154-101
        • PTS-00154-211
