PTSolns RTC MicroSD Data Logging Shield for Uno (Arduino Compatible)
PTSolns RTC MicroSD Data Logging Shield for Uno (Arduino Compatible)
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NOTE: For large quantity orders with custom pricing please contact us directly.
This product has a datasheet!
Also available on
Overview
Data logging shield with RTC, EEPROM, SD card reader and many more functions.
- Data logging shield with RTC and battery backup, EEPROM, SD card reader & QWIIC connector for Uno boards (Arduino compatible)

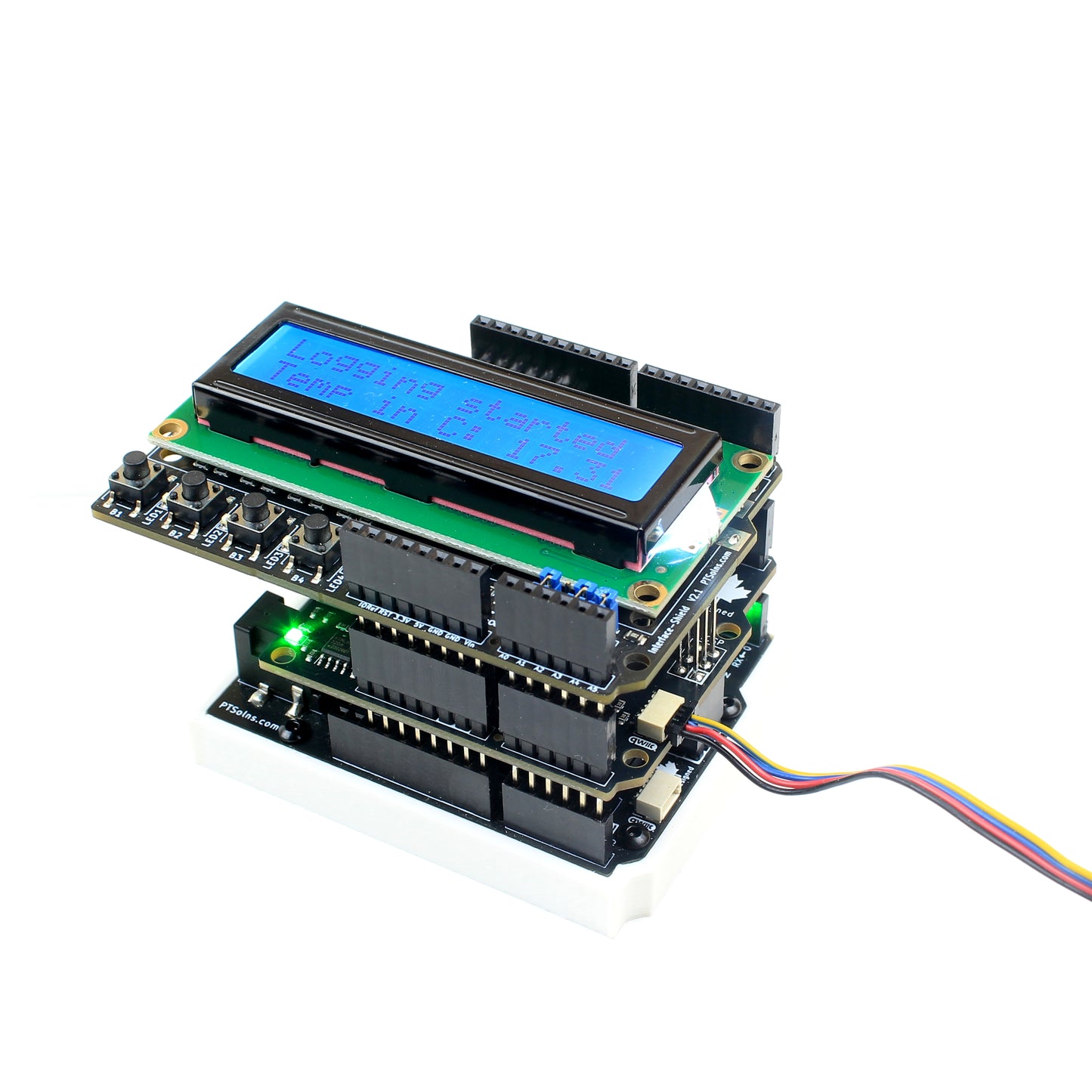

- Flexible design allowing for several hardware pin configurations. Fully stackable and compatible with all Uno boards (such as the PTSolns Uno R3+).
- Part of the Canadian designed PTSolns Shield-Series. See the datasheet on our "PTSolns Documentation Repository" for full details and other supporting material.
- Package includes 1 shield with stacking headers. SOLDERING IS REQUIRED. SD card and coin battery not included.
-
PTSolns Customer Support – Your satisfaction matters to us. Please contact us for troubleshooting help or any other concerns you may have.

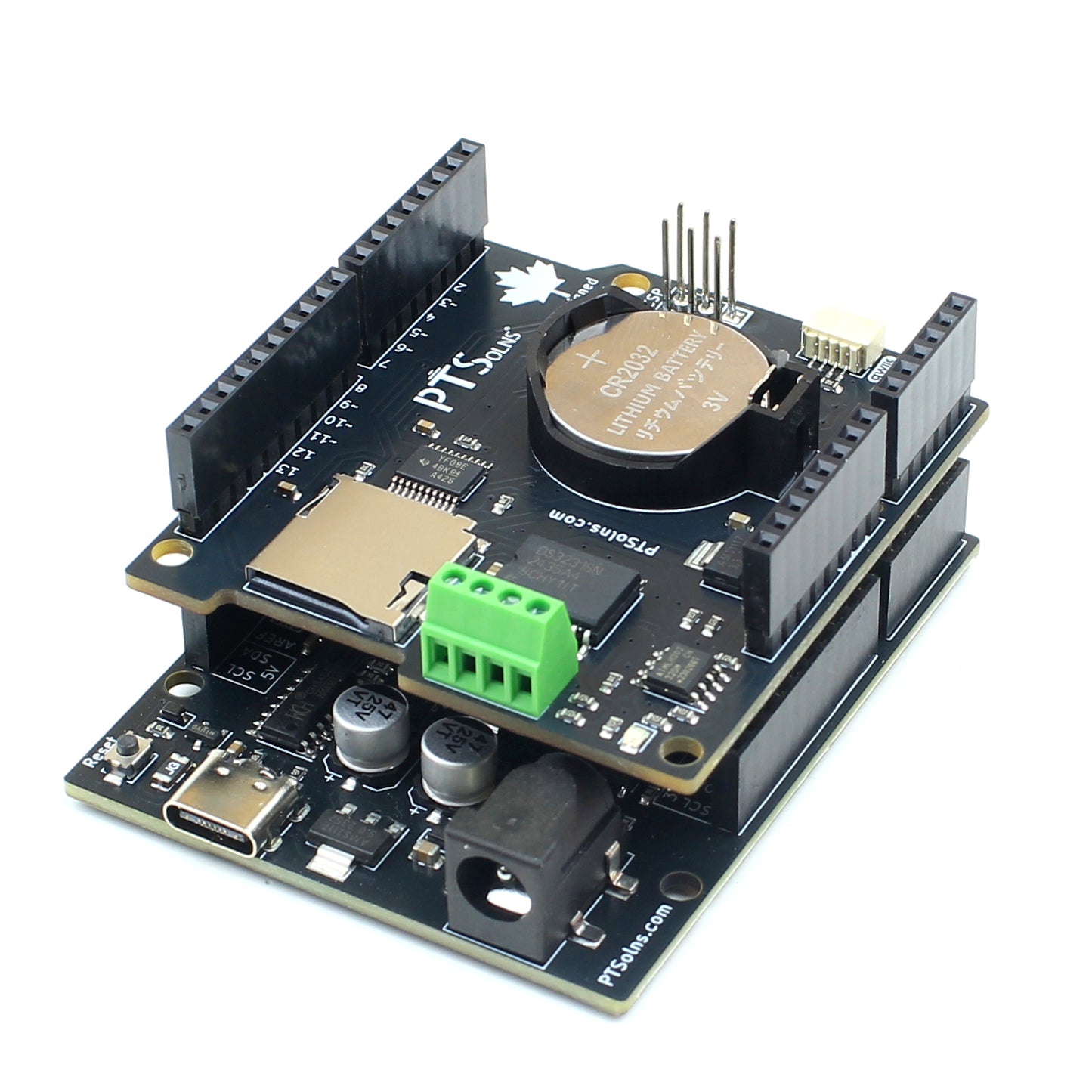

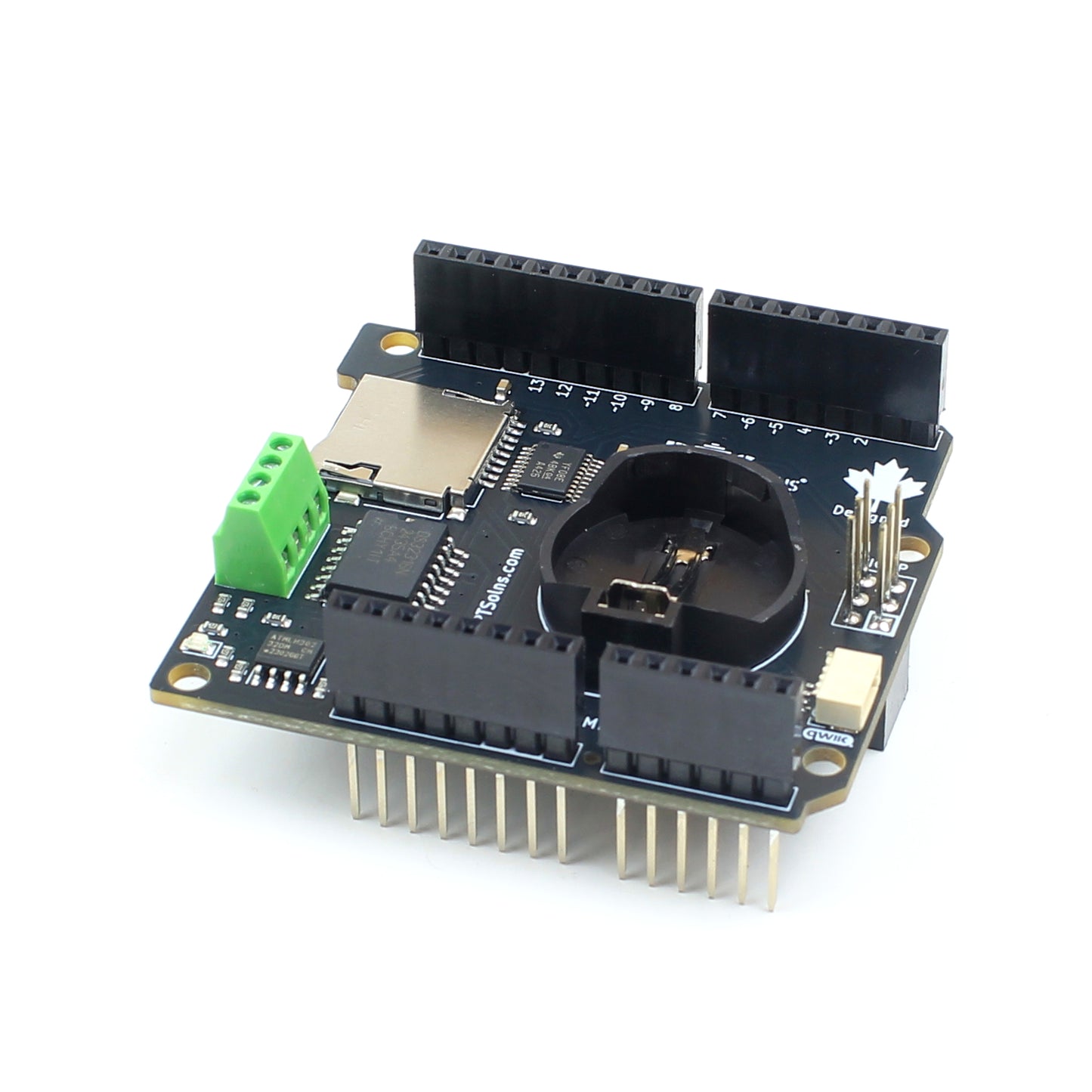

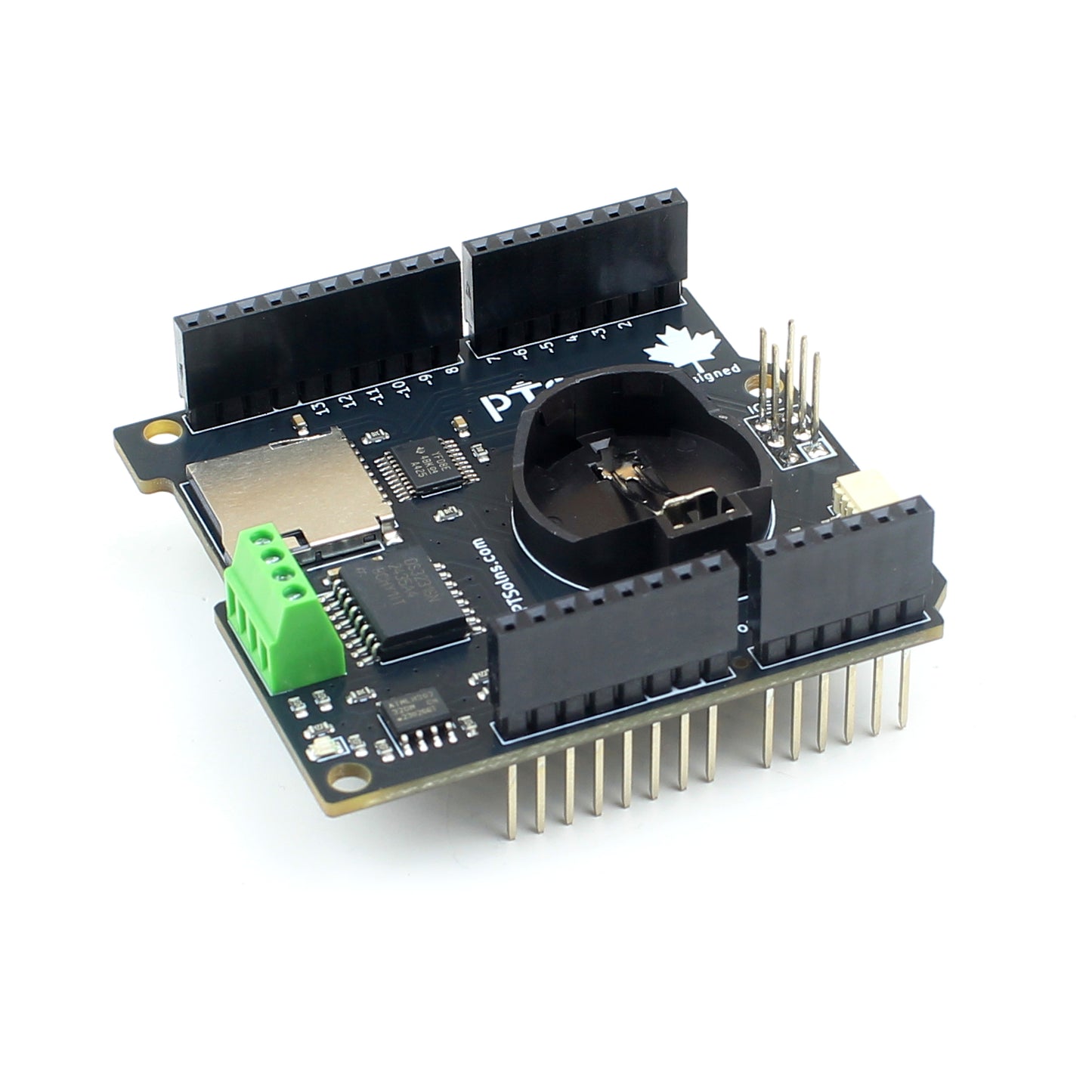

The PTSolns RTC MicroSD Shield is intended for data logging where precise time/date stamps and/or nonvolatile memory are required. The shield is outfitted with a real-time clock (RTC) and optional backup battery, a Micro SD card reader, extra EEPROM, an input/output signal port, and a Qwiic connector.
Several hardware configuration options make this shield very flexible by allowing pin definitions to be changed by the user. The shield is fully stackable and compatible with all the common 5V Uno variations. The RTC MicroSD Shield is ideal for quick prototyping, testing, and educational settings. The Qwiic connector allows for many different I2C modules to be added easily and getting a project started quickly.
Several fully detailed example sketches are available to showcase all the features of the shield.
Product Package
- 1 pc PTSolns RTC MicroSD Shield PCBs
- 1 set of stacking headers
- 1 pc 4-pin screw terminal
